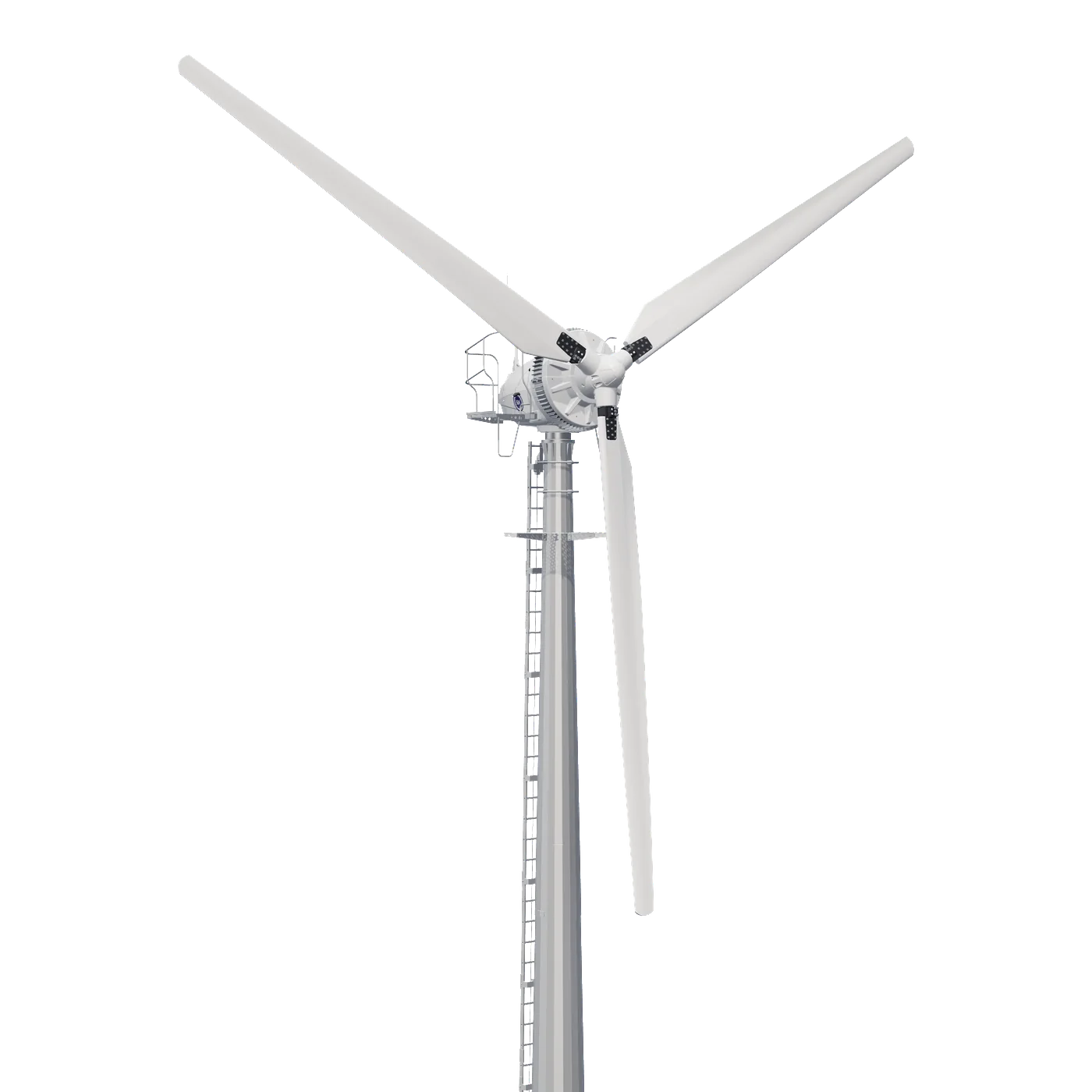

00Kodair Wind KW30
KW30
Unobtrusive, delivering excellent power day and night.
- Rated power
- 32 kW
- Rotor size
- 14.1 m
- Hub height
- 24 m
-
01No gearbox
Air cooled direct drive permanent magnet generator
No gearbox to wear out or create noise. The rotor shaft is the generator shaft, so there are fewer moving parts, lower losses and no gearbox oil to change or leak.
-
02Maximum power
Variable pitch system
The blade angle is adjusted automatically to work efficiently at all wind speeds, and protects the turbine from over-speed in high winds.
-
03Improves energy capture
Motorised yaw system
Automatic alignment with the wind direction captures more energy and reduces loads on the machine.
-
04Ease of access
Hinged top cover
The gas-assisted top cover hinges open, giving access to the service areas without the complexity of removing covers.
-
05Safe access
Ladder access system
Enables many maintenance and service operations to be completed without lowering the turbine to the ground. The ladder has a fall-arrest system, with working platforms at the top.
-
06No need for cranes
Tower tilt system
Instead of needing a crane, a hydraulic system tilts the tower up or down from the base.
-
07KW30
Get a consultation
Rated at 32kW, the KW30 produces 81,050kWh a year at a 6m/s average wind speed, independently certified.
